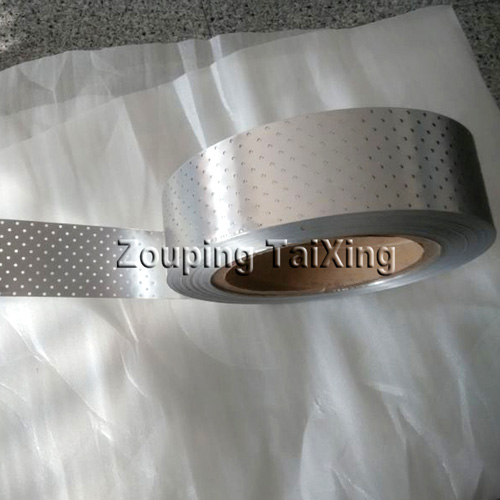

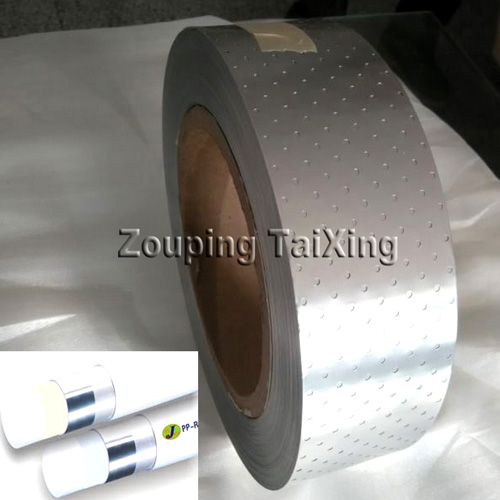

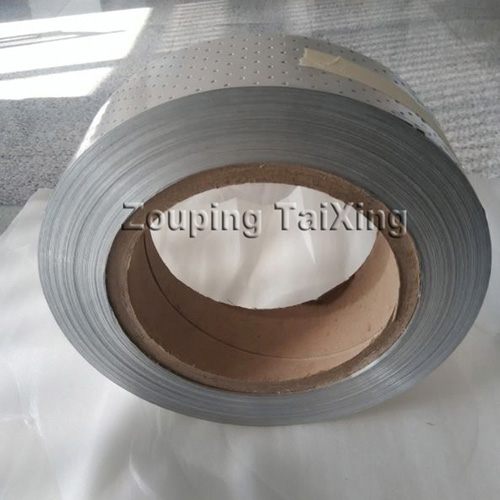

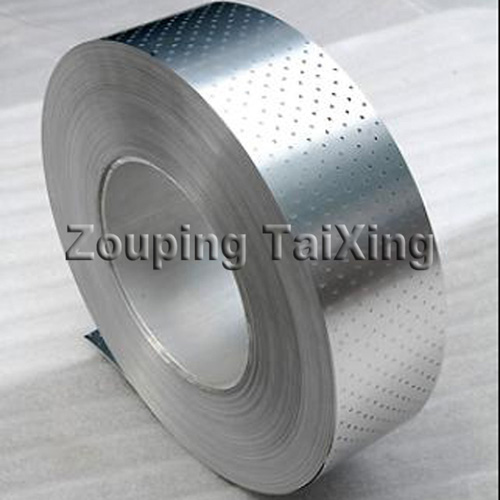

Aluminium Strip For PPR Pipe
Home » Products » Aluminum Foil Coil Strip » Perforated Aluminum Strip For PPR-AL-PPR Pipe
Application of Aluminium Strip For PPR Pipe

Aluminium Strip For PPR Pipe can be used in Random Polypropylene (PP) plastic Aluminum Stable Composite Pipe and make pipe more high strength, high-temperature resistance, eliminate the resonance effect, and make pipe more longevity.

Coating Material of Aluminium Strip For PPR Pipe

Polypropylene, QF551/MITSUI, 50E739/DUPONT.

Specifications of Aluminium Strip For PPR Pipe

Product

Type

Aluminum Strip Thickness

Aluminum Strip Width
(mm)

PP Coating Thickness

Hole Diameter

Alloy NO.(EN-AW)

ID.

Implement Standard

Perforated Aluminium Strip Coated with Polypropylene for PP-R Pipe (Double Side)

dn16

0.12mm 0.15mm

56

0.04mm×2 0.05mm×2

2.0mm 2.5mm 3.5mm

8011
3003

150–152mm

EN575 EN546

dn20

69

dn25

85

dn32

107

dn40

134

dn50

165

dn63

207

dn75

245

dn90

293

dn110

365

Chemical Composition of Aluminium Strip For PPR Pipe (%)

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Other

Aluminum

Each

Total

3004

0.3

0.7

0.25

1.0-1.5

0.8-1.3

-

-

0.25

-

0.05

0.15

Remains

Mechanical Property of Aluminium Strip For PPR Pipe

Temper

Thickness
mm

Tensile Strength
Rm MPa

Yield Strength
Rp0.2 MPa

Elongation %
A50mm

Bend Radius

Hardness HBWa

min.

max.

min.

max.

180°

90°

O

0.2-0.3

155

200

60

13

0t

0t

45
