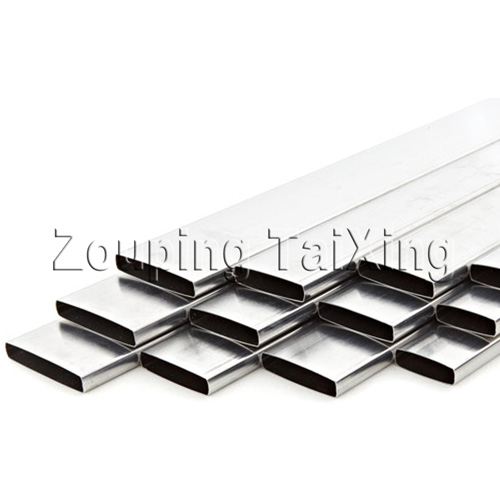

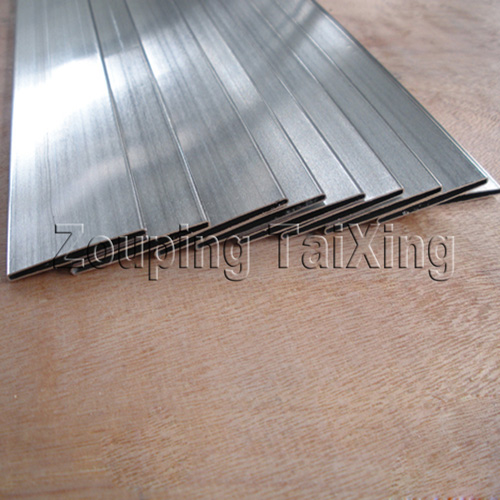

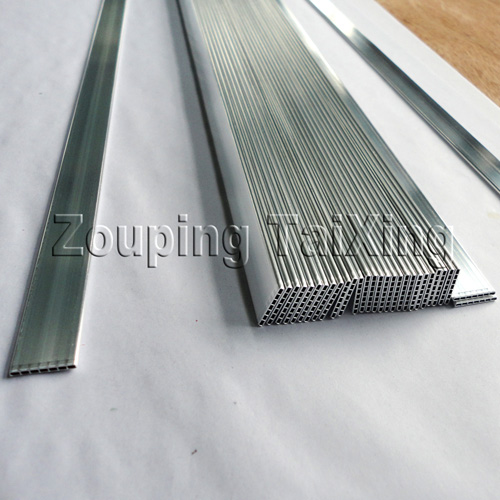

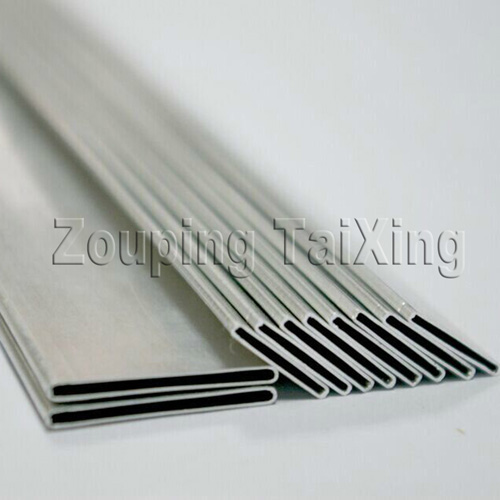

HF Welded Aluminum Tube
Home » Products » Heat Transfer Aluminum Material » High Frequency Aluminum Welded Tube
Advantages of HF Welded Aluminum Tube

1. High quality brightness finish and aesthetics, anti-corrosion, anti-oxidation.

2. Very tight tolerance levels on diameter, thickness and length, tidy and smooth section, no burr.

3. A variety of strong alloys with specific properties offered.

4. Excellent weight - strength ratio: thin tubes with extremely high mechanical values, high strength, good toughness.

5. Smooth and reliable processing. Radiator tubes can be custom-made to meet your special requirements.

6. Embossed patterns are possible for aesthetic or functional use.

7. 100% recyclable product.

8. The weld is always 100% Eddy Current inspected.

Main Equipment of HF Welded Aluminum Tube

1. High frequency welded tube mill.

2. Hot extrusion tube mill.

3. Cold drawn tube mill.

4. Projection measuring instrument, physic drawing High precision measuring equipment.

Application of HF Welded Aluminum Tube

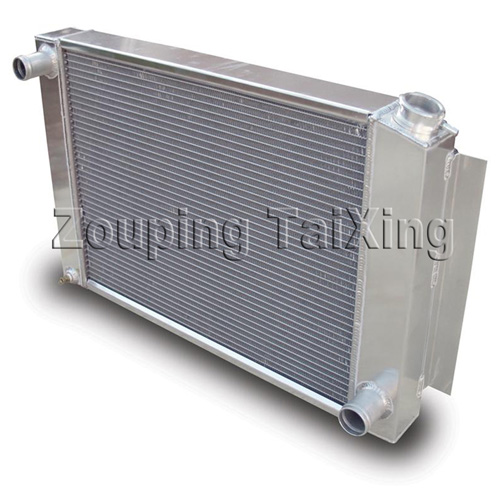

Auto water tank, Heat exchanger, aluminium radiator, inter-cooler, evaporator, etc.

Specifications of HF Welded Aluminum Tube

High Frequency Welded Auto Water Tank Aluminum Tube

Material Alloy

3003, 4343/3003/7072

Product Dimension (mm)

Width (mm)

16

18

22

26

32

Thickness (mm)

2

2

2

2

2

Wall Thickness (mm)

0.28-0.38mm

State

H14

High Frequency Welded Auto Intercooler Aluminum Tube

Material Alloy

3003, 4343/3003/4343

Product Dimension(mm)

Width(mm)

36.6

50

50

62

64

Thickness(mm)

10.1

8.08

10.1

10.1

8.08

Wall Thickness(mm)

0.38-0.50mm

State

H24
