Aluminum Strip For Lamp Holder
Home » Products » Aluminum Foil Coil Strip » 3004 Lamp Cap Aluminum Strip
Feature of Aluminum Strip For Lamp Holder

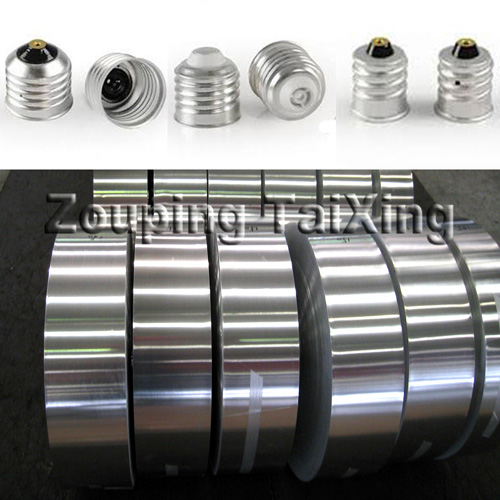

To make aluminum lamp cap, first stamping and then tapping into spiral shape, thinner materials and to withstand the pressure. Therefore, the 3004 lamp cap aluminum strip need to be with high mechanical strength and uniform microstructure and deep drawing property. To make this 3004 O temper aluminum alloy strip, we have to control the composition of the material and cast rolling process, the high temperature uniformity of annealing and final annealing process. TaiXing aluminum for lamp cap have good deep drawing quality, enough strength, good formability.

Package of Aluminum Strip For Lamp Holder

Export standard, covering with plastic film then packed with wooden case/pallet.

Specifications of Aluminum Strip For Lamp Holder

Alloy

3004

Temper

H32,O

Thickness

0.2~0.4mm

Width

20~1000mm

Tolerance

Thickness: +/-0.02mm
Width: +/-1.0mm

Coil ID

76/152/300/400/500mm

Chemical Composition of Aluminum Strip For Lamp Holder (%)

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Other

Aluminum

Each

Total

3004

0.3

0.7

0.25

1.0-1.5

0.8-1.3

-

-

0.25

-

0.05

0.15

Remains

Mechanical Property of Aluminum Strip For Lamp Holder

Temper

Thickness
mm

Tensile Strength
Rm MPa

Yield Strength
Rp0.2 MPa

Elongation %
A50mm

Bend Radius

Hardness HBWa

min.

max.

min.

max.

180°

90°

O

0.2-0.3

155

200

60

13

0t

0t

45
