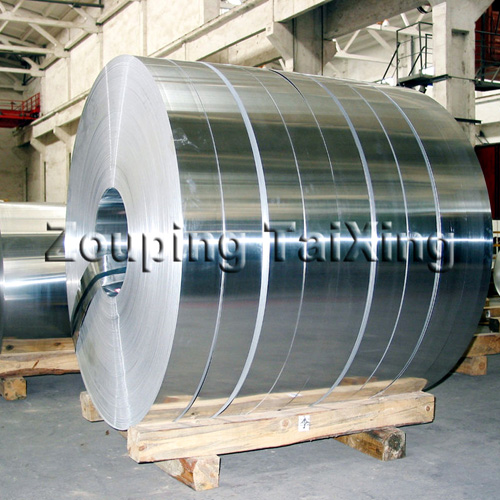

Aluminum Strip For Cable
Home » Products » Aluminum Foil Coil Strip » Aluminum Strip For Cable Wrap
Feature of Aluminum Strip For Cable

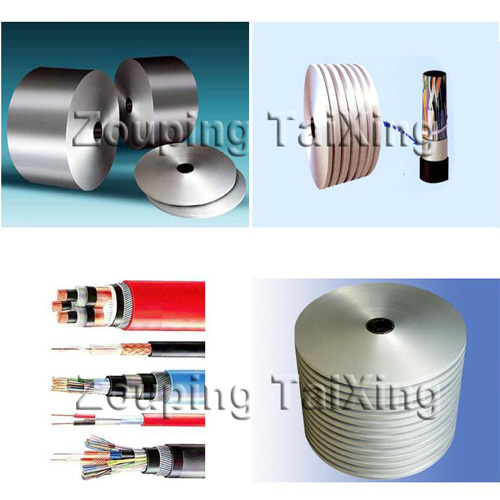

1. In electrical cables, aluminium strip foil is an essential component providing long-term protection. It also insulates against magnetic and radio frequency emissions.

2. Aluminum is lighter in weight and more cost effective than copper.

3. Thicker film substrates provide higher dielectric and tensile strength.

4. Thicker foil substrates provide higher conductivity and tensile strength, and lower signal attenuation.

5. TaiXing meets global standards in the manufacture of its cable wrap stock, which is widely used in various cable brands. With the help of high-quality ingots and state-of-the-art control systems, TaiXing manufactures cable wrap stock with tighter gauge tolerances and meets excellent elongation and length requirements.

Package of Aluminum Strip For Cable

Export standard, covering with plastic film then packed with wooden case/pallet.

Specifications of Aluminum Strip For Cable

Alloy

8011

Temper

O

Thickness

0.15~0.2mm

Width

100~1000mm

Coil ID

76mm, 152mm

Chemical Composition of Aluminum Strip For Cable (%)

Alloy

Fe

Si

Cu

Mn

Mg

Cr

Zn

Ni

Ti

Other

Al

Each

Total

8011

0.6~1.0

0.50~0.9

0.1

0.2

0.05

0.05

0.1

-

0.08

0.05

0.15

Remains

Mechanical Property of Aluminum Strip For Cable

Alloy

Temper

Thickness

Tensile Strength

Elongation % A100mm

8011

O

0.15~0.2mm

60-110MPA

>=16
